Deploy OPNsense 25.1 Nano on AWS

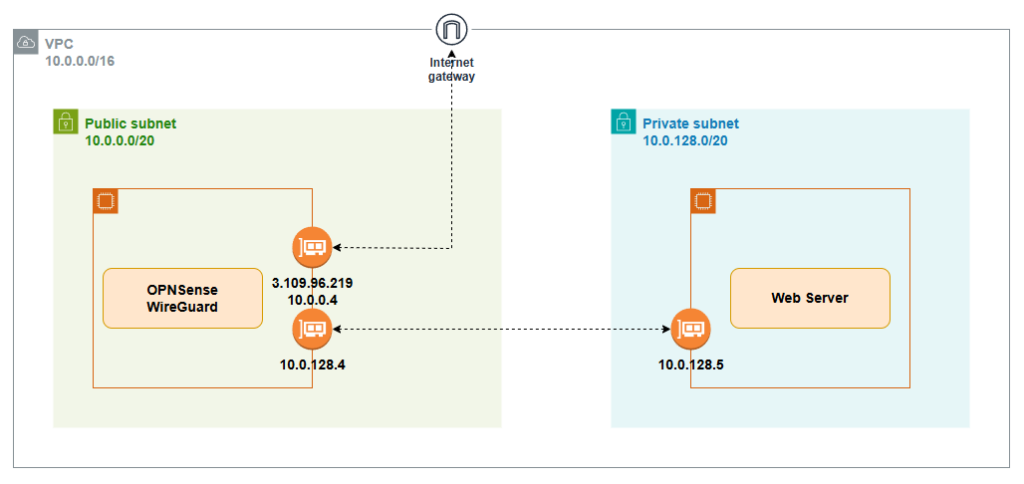

Architecture Overview:

1. Launch OPNsense EC2 Instance (WAN only)

• Go to EC2 → Launch Instance
• Choose your OPNsense 25.1 Nano AMI
• Under Network Settings:
  VPC: Your existing one
  Subnet: test-subnet-public1-ap-south-1a
  Auto-assign public IP: Yes
  Click Advanced network configuration
  Assign Private IP: 10.0.0.4
• Security Group:
  Allow inbound:
  443 (HTTPS – for Web GUI)

⚠️ Do not attach the LAN interface yet — we’ll do that later.

2. Access EC2 Serial Console

• In EC2 Console → Instances → Select your OPNsense instance
• Click Connect → EC2 Serial Console
• Login:

Username: root
Password: opnsense

3. Edit /conf/config.xml (Enable Public WebGUI Access)

vi /conf/config.xml

Insert the following inside the <webgui> section (or create one if missing):

<nohttpreferercheck>1</nohttpreferercheck>
<nodnsrebindcheck>1</nodnsrebindcheck>

4. Reboot the Instance

reboot

5. Access the OPNsense Web GUI

Open a browser and go to:

https://OPNsense-public-IP

Login

Username: root
Password: opnsense

6. Create & Attach LAN Interface (ena1)

• Go to EC2 → Network Interfaces → Create Network Interface
  Subnet: test-subnet-private1-ap-south-1a
  Private IP: 10.0.128.4
  No public IP
• Attach it to the running OPNsense instance

7. Assign & Enable LAN in OPNsense

• Web GUI → Interfaces → Assignments
• Assign the second interface as LAN
• Set static IP: 10.0.128.4 (OPNsense LAN IP)
• Enable the interface

8. (Optional) Confirm LAN Firewall Rule

OPNsense typically includes this default rule:

IPv4 *    LAN net    *    *    *    *    *    Default allow LAN to any rule

If present, no action needed.

If missing, add this rule:

• Go to: Firewall → Rules → LAN
• Add:
  Action: Pass
  Source: LAN net
  Destination: any
  Description: Allow LAN to any rule

9. Update Route Table for Private Subnet

Go to VPC → Route Tables, find the one associated with test-subnet-private1-ap-south-1a and:

Add a route:

Destination: 0.0.0.0/0
Target: 10.0.128.4 (OPNsense LAN IP)

Now all instances in the private subnet route outbound traffic through OPNsense.

10. Disable RAM Disk

• Login to the OPNsense Web UI.
• Navigate to:
  System → Settings → Miscellaneous
• Scroll down to the section:
  “Disk / Memory Settings (reboot to apply changes)”
• Uncheck these options:
  Use memory file system for /var/log
  Use memory file system for /tmp
• Save
• Reboot the firewall to apply the changes.
